3U AC/DC Power Supplies – EC Series
Download CatalogueMonovolt AC/DC

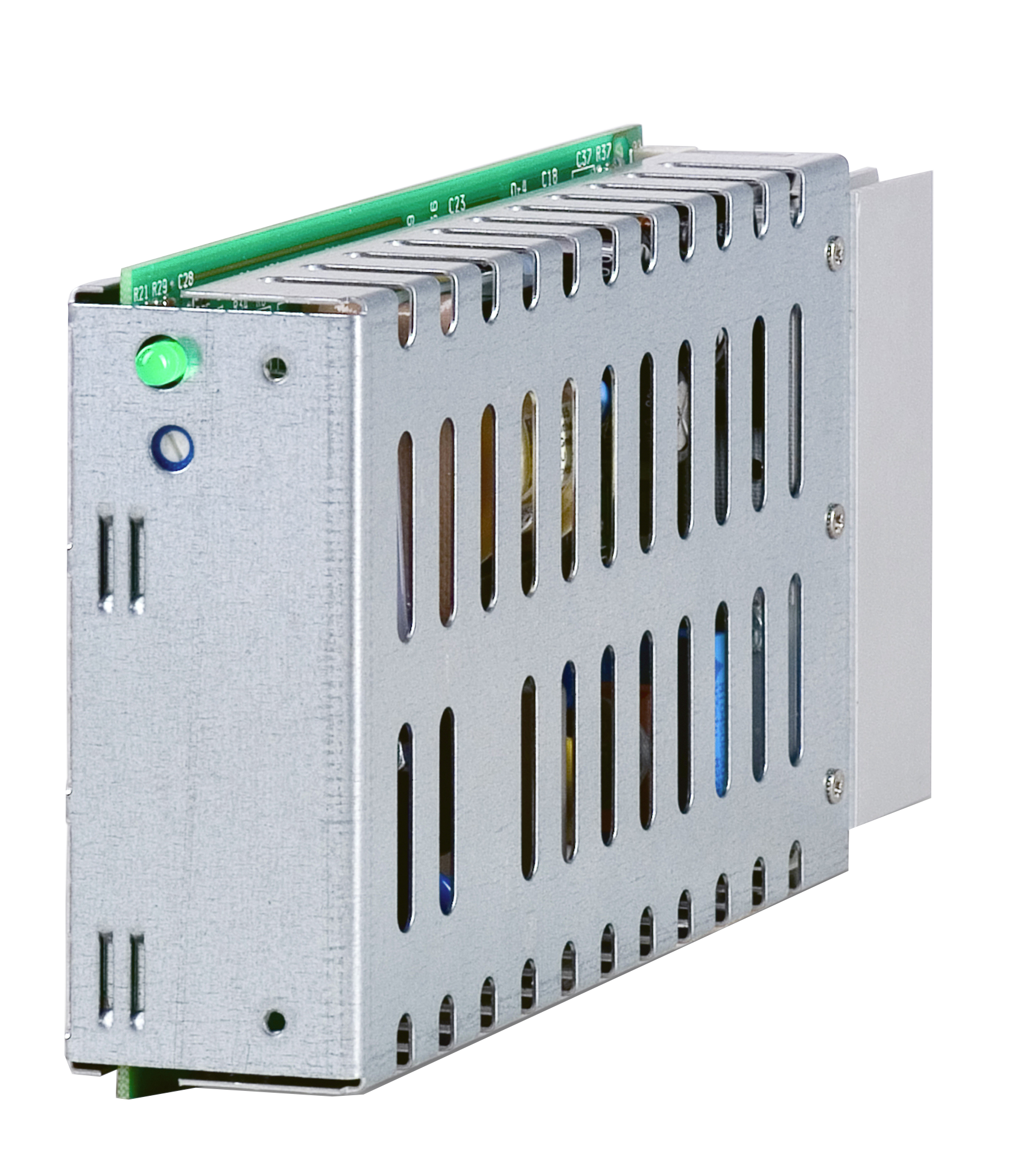

50 Watt switched mode AC/DC plug-in power supplies with one output in 3U/8HP steelcassettes for use in 19” subracks to DIN 41494
| Type | Output | Order Code |
|---|---|---|
| EC50 | 5V/8A | 116-10188* |
| EC50 With PF | 5V/8A | 116-10189* |
| EC50 | 12V/4A | 116-10190* |
| EC50 | 15V/3,5A | 116-10192* |
| EC50 | 24V/2,2A | 116-10194* |
Accessories
| Description | Output | Code |
|---|---|---|
| Reduced height front panel with handle: EC50 | 148-10002 | |
| DIN 41612 – mating connector | 17-10115 | |
| Coding Keys Pack 10 | 17-10064 |
* EN60950 certified
Trivolt AC/DC
50 Watt switched mode AC/DC plug-in power supplies with three output in 3U steelcassettes for use in 19” subracks to DIN 41494
| Type | Output | Output | Output | Without PF | With PF |
|---|---|---|---|---|---|
| EC50 | +5V/5A | +12V/1,8A | -12V/0,4A | 116-10130* | 116-10131* |
| EC50 | +5V/5A | +15V/1,4A | -15V/0,3A | 116-10183* | 116-10184* |
| EC50 | +5V/5A | ±15V/0,8A | 116-10186* | 116-10187* | |
| EC50 | +5V/5A | ±12V/1A | 116-10217* | 116-10218* |
Accessories
| Description | Order Code |
|---|---|
| Reduced height front panel with handle: EC50 | 148-10002 |
| DIN 41612 – mating connector | 17-10115 |
| Coding Keys | 17-10064 |
* EN60950 certified
