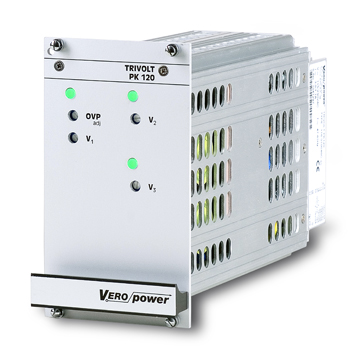

3U AC/DC Power Supplies – PK Series
Download CatalogueMonovolt AC/DC
30 to 120 Watt switched mode AC/DC plug-in power supplies with one output in 3U Eurocassettes for use in 19” subracks to DIN 41494
MONOVOLT PK30 : 30Watt
| Type | Output | Without Powerfail | With Powerfail |
|---|---|---|---|
| PK30 | 5V6A | 116-10016* | |
| PK30 | 12-15V/2A | 116-10215 | |
| PK30 | 24V/1.5A | 116-10216 |
MONOVOLT PK60 und PK60-R = N+1 redundant : 60Watt
| Type | Output | Without Powerfail | With Powerfail |
|---|---|---|---|
| PK60 | 3.3V/15A | 116-10196 | |
| PK60 | 5V/12A | 116-10063* | 116-10074* |
| PK60 | 12V/5A | 116-10064* | |
| PK60 | 15V/4A | 116-10065* | |
| PK60 | 24V/2.5A | 116-10066* | 116-10077* |
| PK60-R | 5V/12A | 116-10128* | |
| PK60-R | 12V/5A | 116-10219* | |
| PK60-R | 15V/4A | 116-10220* | |
| PK60-R | 24V/2.5A | 116-10129* | |
| * EN60950, UL und cUL zertifi ziert – certified |
MONOVOLT PK 120 : 120Watt
| Type | Output | Without Powerfail | With Powerfail |
|---|---|---|---|
| PK120 | 5V/20A | 116-10069 | 116-10081 |
| PK120 | 12V/10A | 116-10070 | 116-10082 |
| PK120 | 15V/8A | 116-10071 | |
| PK120 | 24V/5A | 116-10072 | 116-10084 |
Accessories
| Description | Order Code |
|---|---|
| Reduced height front panel: PK30 | 148-11002 |
| Reduced height front panel: PK30 | 148-10021 |
| Reduced height front panel: PK120 | 148-10019 |
| Reduced height front panel: PK120 | 17-10115 |
| Coding Keys : Pack 10 | 17-10064 |
Bivolt AC/DC
30 to 60 Watt switched mode AC/DC plug-in power supplies with two outputs in 3U/8HP Eurocassettes for use in 19” subracks to DIN 41494
BIVOLT PK30 : 30Watt
| Type | Size | Output | Order Code |
|---|---|---|---|
| PK30 | 3U x 8HP | ±12 – 15V/1A | 116-10015* |
BIVOLT PK60 : 60Watt
| Type | Size | Output | Order Code |
|---|---|---|---|
| PK60 | 3U x 8HP | ±12-15V/2A | 116-10022** |
| PK60 | 3U x 8HP | 5V/6A;12-15V/2A | 116-10024** |
| PK60 | 3U x 8HP | 5V/6A ; 24V/1,5A | 116-10025** |
| PK60 | 3U x 8HP | 12-15V/2A ; 24V/1,5A | 116-10080** |
Accessories
| Description | Order Code |
|---|---|
| Reduced height frontpannel (PK30) | 148-11002 |
| Reduced height frontpannel (PK60) | 148-10011 |
| DIN 41612 – mating connector | 17-10115 |
| Coding Keys Pack 10 | 17-10064 |
* EN60950 and UL certified
** EN60950 certified
Trivolt AC/DC
75 Watt switched mode AC/DC plug-in power supply with 3 outputs in 3U Eurocassettes for use in 19″ subracks to DIN 41494
A 75W power supply as expansion of our PK Series, now with 115/230V universal input, with 3 outputs 5V/8A and ±12–15V in linear quality up to 2A load, all with LED and individually adjustable. 79% efficiency eliminates the need of projecting heatsinks. This unit replaces many different variants.
| Type | Outputs | Order Code |
|---|---|---|
| Trivolt PK75 | 5V/8A; +12V—15V/2A; -12V—15V/1A | 116-410018 |
| PK75 | Reduced height frontpanel PK75 | 148-11000 |
| DIN 41612 | Mating connector coded to H15 to DIN 41612 | 17-10115 |
| Coding Keys | (Pack per 10) | 17-10064 |
