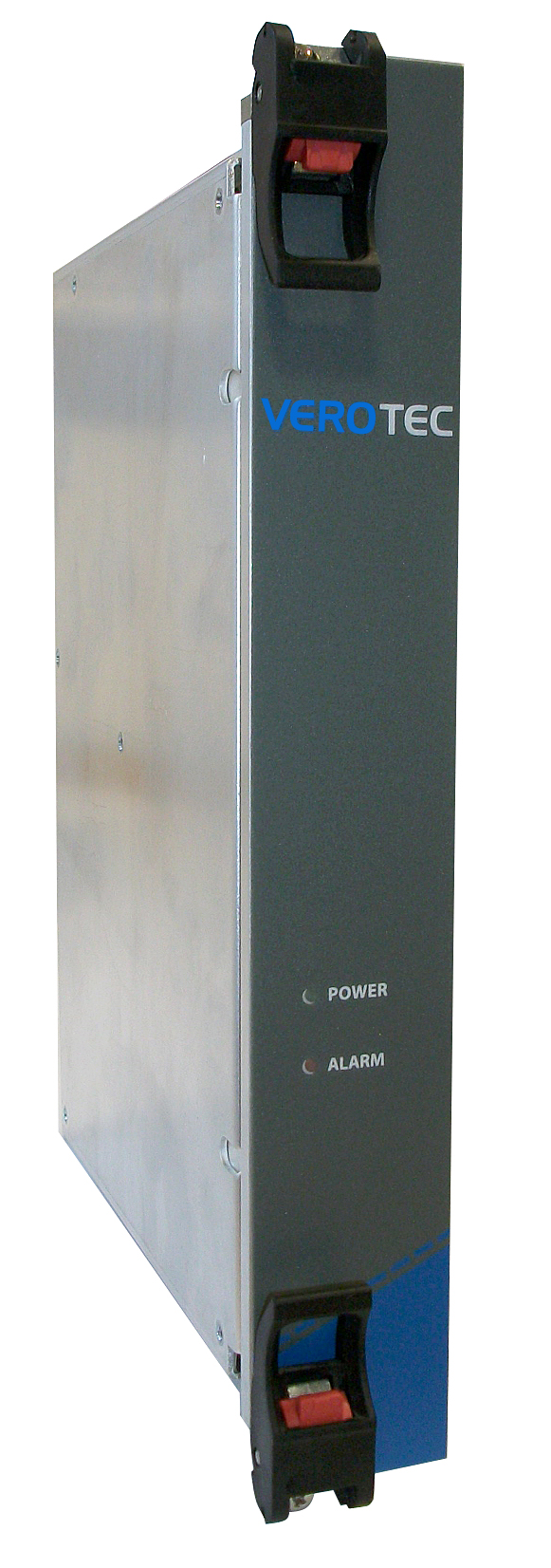

6U CompactPCI/VME Power Supplies – DC/DC

FEATURES
l 350W output power
l Efficiency – better than 79%
l 18-36VDC Nominal Input Voltage
l Operation Temp. -5ºC to +55 ºC – No De-rating
l “Hot-Swap” Active Current share on V1 & V2
l N+1 Full redundancy operation
l No Minimum loading requirement
l Standard PICMG® 47Pin Connector
l IEEE 1101.10 compliant form factor
l Safety Per UL CSA & CE Marking
l Meets FCC-68 Part 15 Class-B & EN-55022 Class-B with external line filter
l I2C Data Bus (optional) for PSU Hardware configuration

FEATURES
l 400W output power
l Efficiency – better than 83%
l 36-72VDC Nominal Input Voltage
l Operation Temp. -5ºC to +55 ºC – No De-rating
l “Hot-Swap” Active Current share on V1 & V2
l N+1 Full redundancy operation
l No Minimum loading requirement
l Standard PICMG® 47Pin Connector
l IEEE 1101.10 compliant form factor
l Safety Per UL CSA & CE Marking
l Meets FCC-68 Part 15 Class-B & EN-55022 Class-B with external line filter
l I2C Data Bus (optional) for PSU Hardware configuration

FEATURES
l 500W output power
l Efficiency – better than 83%
l 36-72VDC Nominal Input Voltage
l Operation Temp. -5ºC to +55 ºC – No De-rating
l “Hot-Swap” Active Current share on V1 & V2
l N+1 Full redundancy operation
l No Minimum loading requirement
l Standard PICMG® 47Pin Connector
l IEEE 1101.10 compliant form factor
l Safety Per UL CSA & CE Marking
l Meets FCC-68 Part 15 Class-B & EN-55022 Class-B with external line filter
l I2C Data Bus (optional) for PSU Hardware configuration
